| Brand Name: | KINGLEADER |
| Model Number: | SKB-107-M |
| MOQ: | 1pcs |
| Price: | US$30-40 |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, Western Union, L/C, D/A, D/P, MoneyGram |

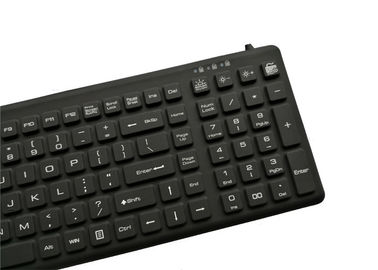

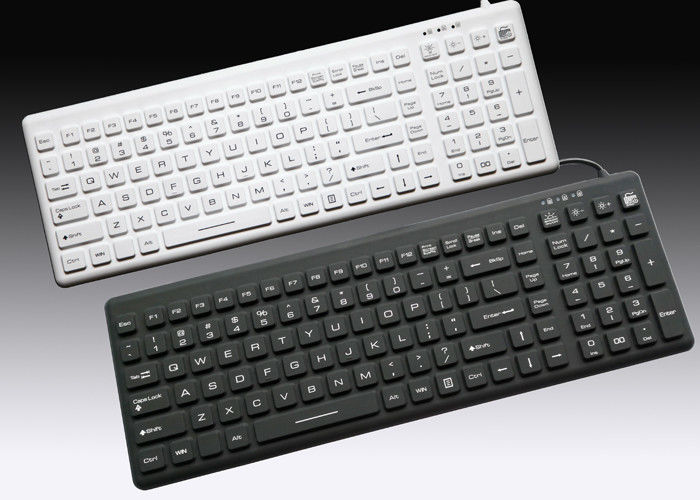

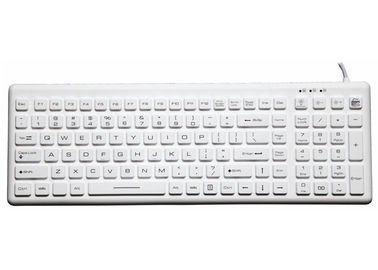

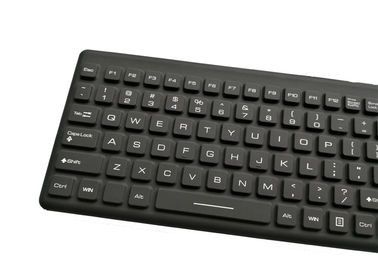

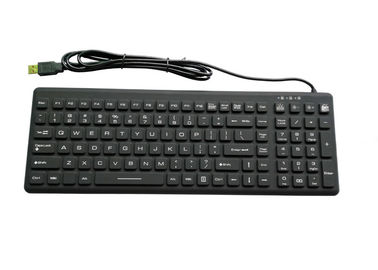

IP68 Waterproof Hygienic keyboardand Resistant Against All Kinds of Contamination
Part Number: SKB-107-M
Specification:
- 110 keys including 12 function keys and numeric keypad
- Adjustable brightness of backlight
- Backlight can be chosen ON or OFF by pressing the “Backlight” key
- All the keys can be locked and disabled for cleaning simply through pressing the “5 Sec ON/OFF” key for 5 seconds
- Use of antimicrobials to contain reproduction of harmful bacterials
- Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists
- Custom color available
| Material | - Silicone |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 30º C to + 75º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 60-80g - Key travel: 2mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | FCC,CE,RoHs |
| Dimension | -380.00(L) x 130.00(W) x 12.00(T) mm |
| Weight | 0.7kgs |
FAQ
1. Q: How could I get samples?
A: If you need to order sample for checking-up, we would like to ask you to pay for the samples and courier freight. We send the samples to you only after receipt of your payment. If you have an courier account, you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on the quantity, weight and carton size and your area.
3. Q: How can i get your price list?
A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message”. We will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
A: Yes, We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
A: We accept terms of T/T /West Union/ PayPal/ LC/Credit Card
6. Q: What's the warranty of your products?
A: one year
Main Markets:
North America; South America; Eastern Europe; Mid East; Eastern Asia; Western Europe; Central America; Northern Europe; Southern Europe
|
|
