| Brand Name: | KINGLEADER |
| Model Number: | MKB-F86-TP-DT-BL |
| MOQ: | 1pcs |
| Price: | US$150-250 |
| Packaging Details: | 1pcs/box,10boxes/ctn |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

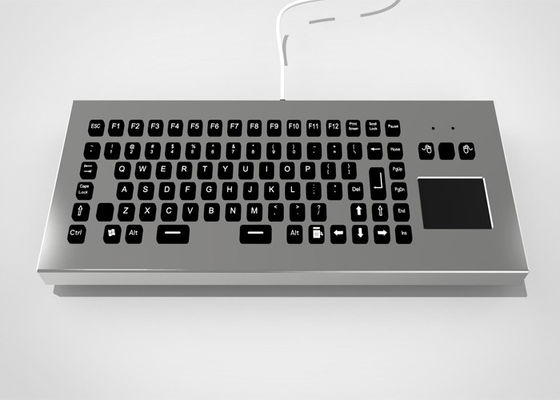

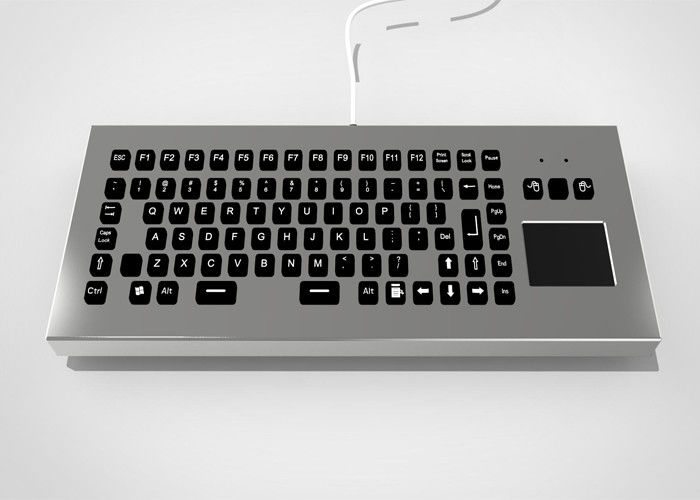

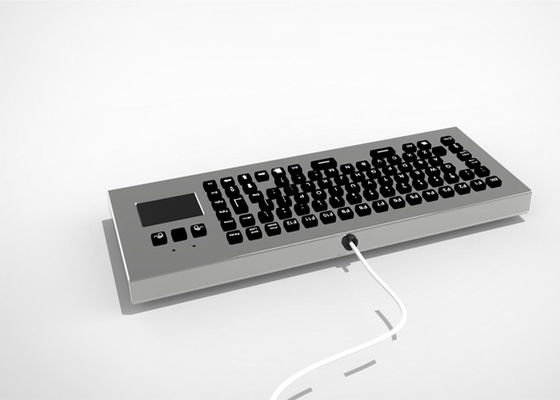

Backlight Rugged Desktop Metal Keyboard with Function Keys and Touchpad
Key Features:
1) Desktop style, no mounting needed, enjoy the convenience of mobility
2) 86 keys including 12 function keys F1~F12 with backlight
3) Integrated touchpad
4) Protruding full travel(2.0mm)keys with laser-etching graphics, excellent tactile feedback
5) Designed to operate in harsh environments
6) The enclosure is made of stainless steel, high resistance against rust, corrosion and vandalism
7) The keys are made of high temperature resistant polycarbonate that can survive temperature up to 140 degree C
7) Dust-proof and liquid-proof, meet IP65 up to IP68 rating
8) PS/2 or USB interface for option
9) Customizable layout upon customer’s request
|
Technical Specification |
|
|
Material |
|
|
Front panel & Keys |
Brushed stainless steel |
|
Back panel |
Brushed stainless steel |
|
Keys |
High-temperature resistant polycarbonate |
|
Electrical Data |
|
|
Power supply voltage |
DC 5 V ± 5% |
|
Current rating |
20 mA |
|
Interface |
USB or PS2 |
|
EMC compliant |
Emission: EN 50081-1 |
|
FCC |
Part 15, class B |
|
Certification |
CE,FCC,ROHS |
|
Environmental Characteristics |
|
|
Operating temperature |
-20º C to + 60º C |
|
Key travel |
2.0mm |
|
Lifetime (cycles) |
Min 5, 000, 000 actuations |
|
Sealing protection |
IP65/NEMA4X from the front up to IP68 |
|
Vibration resistance |
5 Hz - 200 Hz, IEC 60512-4 |
|
Shock resistance |
3 axis 150 m/s² - 11 ms, IEC 60512-4 |
|
Compatible Operation System |
|
|
PS2 |
Win NT4, 98SE, 98ME, 2000, XP,Win7,Linux,Win8 |
|
USB |
Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7,Linux,Win8,WIN10 |
|
Weight and Dimension |
|
|
Weight |
2.50kg |
|

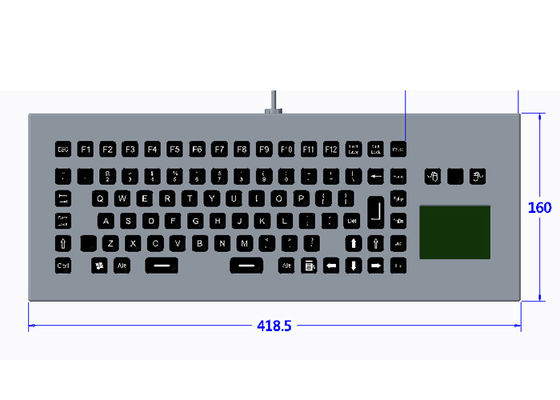

Dimension |
418.50 x 160.00 x 31.50 mm(L x W x H) |
|
|
