| Brand Name: | KINGLEADER |
| Model Number: | SKB-85-TP |
| MOQ: | 1pcs |
| Price: | US$30-60 |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

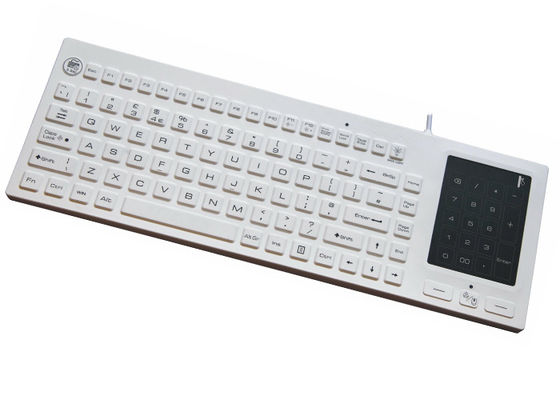

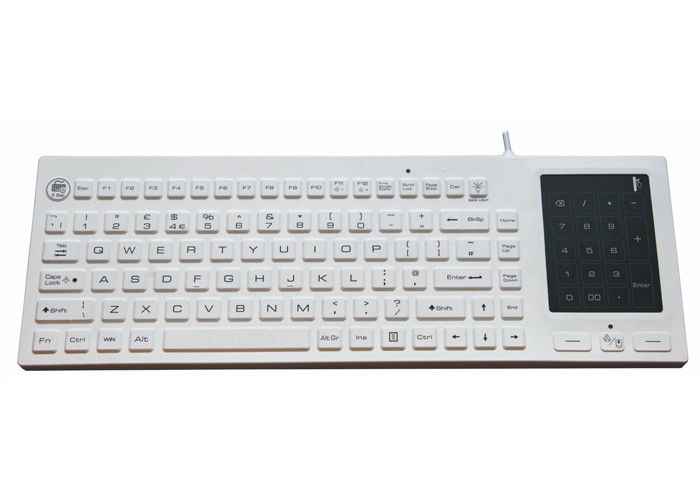

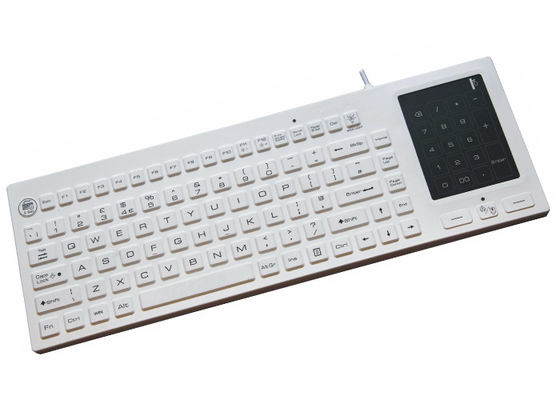

Washable Silicone backlit keyboard with 2-in-1 touchpad and number pad
Part Number:SKB-85-TP
Specifications:
- Made of silicone rubber
- With integrated 2-in-1 touchpad and number pad
- 88 keys including 12 function keys
- Adjustable brightness of backlight
- Backlight can be chosen ON or OFF by pressing the “Backlight” key
- All the keys can be locked and disabled for cleaning simply through pressing the “5 Sec ON/OFF” key for 5 seconds
- Key actuation force:60-80g
- Key travel distance:2.0mm
- Key Lifespan:>10 millions actuations
- Seal Protection level:completely sealed to be IP68 compliant
| Items | Specifications |
| Key Feature |
- With integrated 2-in-1 touchpad and number pad - 88 keys including 12 function keys - Adjustable brightness of backlight - Backlight can be chosen ON or OFF by pressing the “Backlight” key - All the keys can be locked and disabled for cleaning simply through pressing the “5 Sec ON/OFF” key for 5 seconds - Use of antimicrobials to contain reproduction of harmful bacterials - Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists - Custom color available |
| Material | - Silicone |
| Electrical Data | - Power supply voltage: DC5V ± 5% - Current rating: <=100mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 30º C to + 75º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 60-80g - Key travel: 2mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | FCC,CE,RoHs |
| Dimension | -380.00(L) x 130.00(W) x 12.00(T) mm |
| Weight | 0.65 kgs |
Our Services
* We’re a professional manufacturer for over 10 years.
* Experienced Technical Staffs and Patient, professional sales team.
* High quality assurance with competitive price
* OEM and ODM available.
* Any of your feedback will be responded within 12 hours
* Best after sales service to ensure satisfaction from customers.
How to order?
If you are interested in our products and want to place an order, firstly contact us by email,or contact with us online and we will send you our price list.
After that you can make a list of the products or just show the pictures that you are interested in and send it to usso that we can prepare the Proforma Invoice with freight cost and bank account for your checking.
After you received the Proforma Invoice you can arrange payment using Western Union or Bank Transfer or Paypal.
Once we receive your full payment we prepare your goods and ship them out in 3-5 working days.
And we need to know the following information of your order:
a) Shipping information - Contact Name, Company name, Detail address, Phone number, Fax number,
b) Product information - model numbers, quantity, pictures
c) Delivery time required
d) Freight payment (by collect or prepare),or if you have own forwarder, tell us their contact details
|
