| Brand Name: | KINGLEADER or Customer's logo |
| Model Number: | MKB-65A-TB-MB |
| MOQ: | 1pcs |
| Price: | US$145/pc Exworks |
| Packaging Details: | 10pcs/ctn |
| Payment Terms: | L/C,T/T,Western Union,Paypal,D/A, D/P |

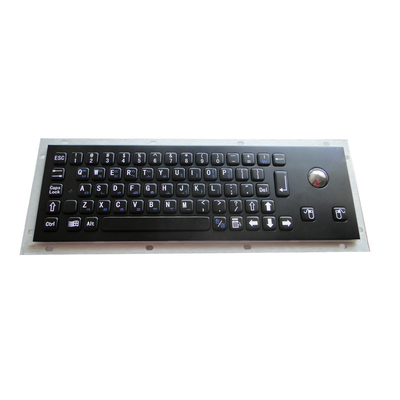

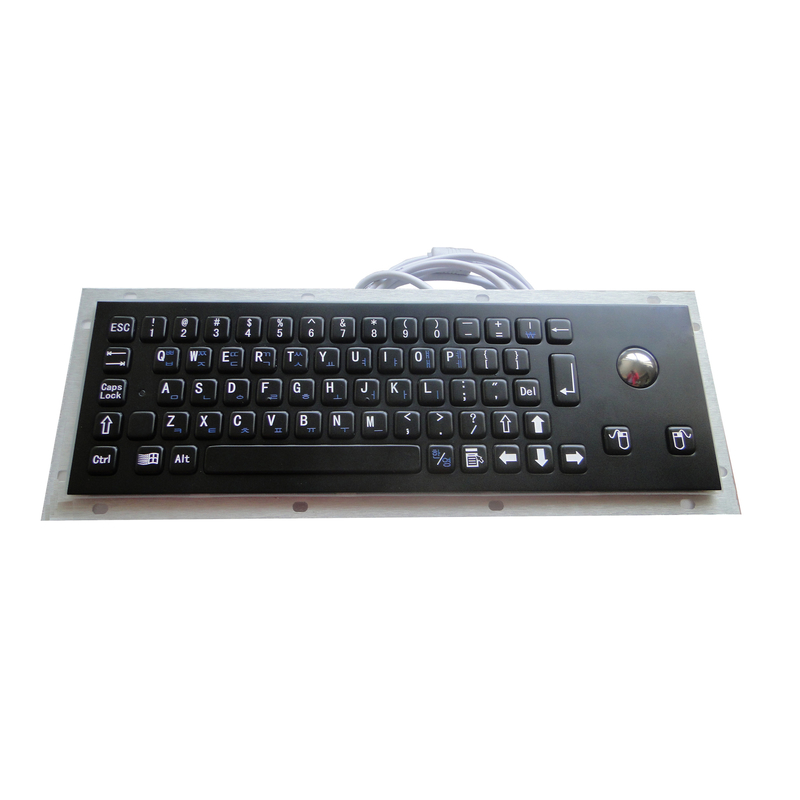

KINGLEADER’s MKB-65A-TB-MB,is an IP65 compact 65-key panelmount stainless steel keyboard with integrated trackball.
Its keys and face plate are eletro-plated black,which further strengthens its resistance against rust and corrosion.
Due to its special design and construction,it is rugged,waterproof,dust-proof,vand-proof,rust-resistant it is an ideal input terminal used in industrial or military environments.
|
Items
|
Specifications |
|---|---|
| Key Features |
- Small in overall dimension,while the keys still remain big enough for fingers to press,avoiding the disadvantage of too small keys that exists in most of small-sized keyboards - All the keys and face plate are electroplated black,further strengthening its resistance against rust and corrosion. - 65 keys, compact size with integrated optical trackball, - Panel mount from the rear side - Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feel - Specially designed to operate in harsh environments, making it ideal for kiosk and other applications in industrial or military environments. - Built from stainless steel,robust enough against destruction - Dust-proof and liquid-proof, meet IP65 requirements - PS/2 or USB interface, easy to plug into computers directly -Layout customizable |
| Material |
- Keys and face plate: 304 stainless steel - Back plate:aluminum alloy |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics |
- Operating temperature: -20º C to + 60º C - Humidity: Humidity 40°C at 90 % RH |
| Mechanical Data | - Actuation force: 120±15g - Key travel: 2.0mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP,Linux - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10,Linux |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | -CE,FCC,RoHS |
| Dimension |
- Face plate:330.00 x 100 mm(L x W) |
| Weight |
-1.50 kgs
|
|
